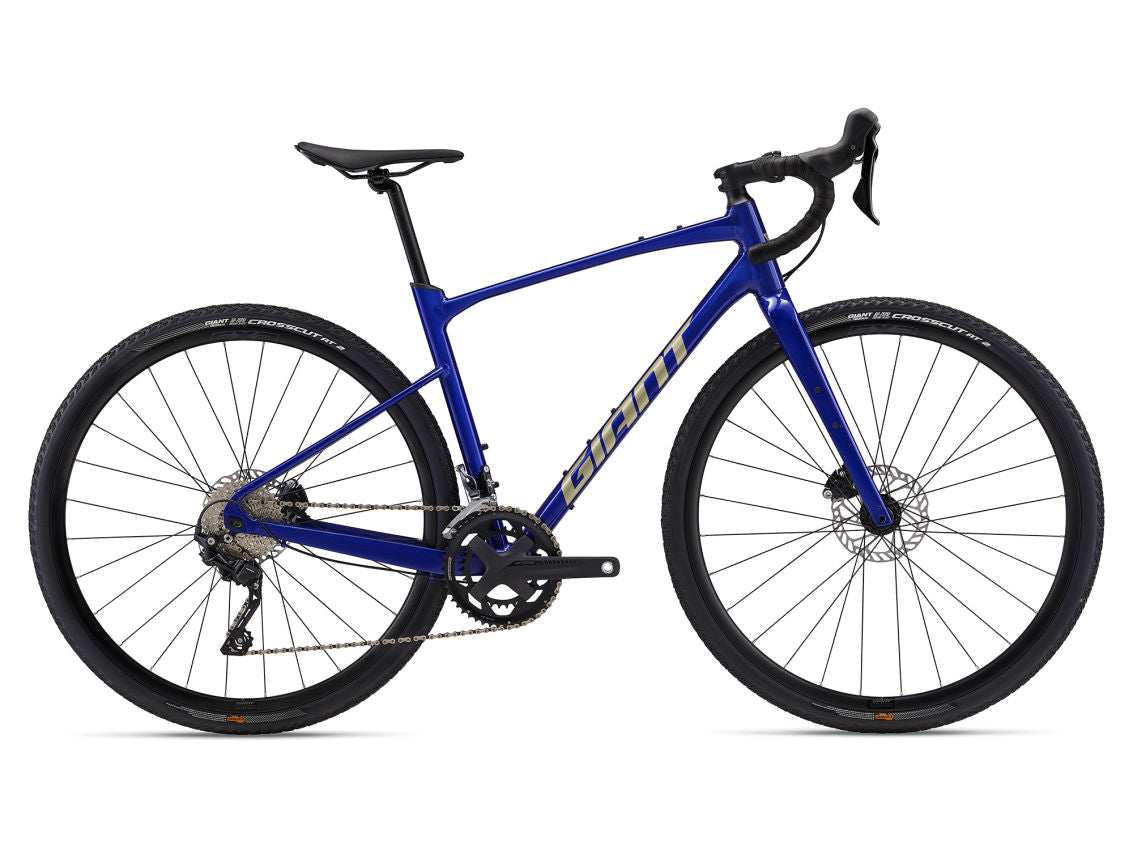

GIANT 2024 REVOLT 1 公路車/ GIANT 2024 REVOLT 1 ROAD BIKE

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

• Sizes
  XS, S, M,
• Colours
  AEROSPACE BLUE
• Frame
  ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Shock
  N/A
• Handlebar
  Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  cork tape with gel
• Stem
  Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Giant D-Fuse, alloy, 14mm offset
• Saddle
  Giant Approach
• Pedals
  N/A
• Shifters
  Shimano GRX RX-400, 2x10
• Front Derailleur
  Shimano Tiagra
• Rear Derailleur
  Shimano GRX RX-400
• Brakes
  Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  Shimano GRX RX-400 hydraulic
• Cassette
  Shimano HG500, 11x34
• Chain
  KMC X10 with Missing Link
• Crankset
  FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  FSA Mega EXO
• Rims
  Giant S-X2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  stainless
• Tires
  Giant CrossCut AT 2, 700x38c, tubeless
